Welcome to the sixth installment of our Hardware Analysis Series, this time in English, where we dive into the tools and techniques that unlock the secrets of the silicon world. If you’ve been following along, we’ve explored oscilloscopes, logic analyzers, software-defined radios (SDRs), multimeters, and reverse engineering tools like Ghidra. Now, we’re tackling a device that’s become a cornerstone for hardware hackers: the Bus Pirate. This unassuming USB dongle is a universal translator for digital buses, letting you read, write, and manipulate the low-level communications that make devices tick. Whether you’re probing an IoT gadget, reverse engineering a retro console, or debugging a custom circuit, the Bus Pirate is a go-to tool for interacting with chips at their most fundamental level.

In this blog, we’ll dissect the Bus Pirate—its history, capabilities, and real-world applications—while providing an exhaustive, step-by-step guide to using it in common scenarios. We’ll cover everything from reading an EEPROM to fuzzing protocols, with precise commands, troubleshooting tips, and scripts to automate your work. Our goal is to make this post a definitive resource, so you can pick up a Bus Pirate and start hacking with confidence, knowing every step is tested and reliable. We’ll also show how it fits into a broader toolkit alongside oscilloscopes, logic analyzers, and software, ensuring you have a complete picture of its role in hardware hacking. Let’s dive in and explore why, in 2025, the Bus Pirate remains a must-have for anyone serious about understanding hardware

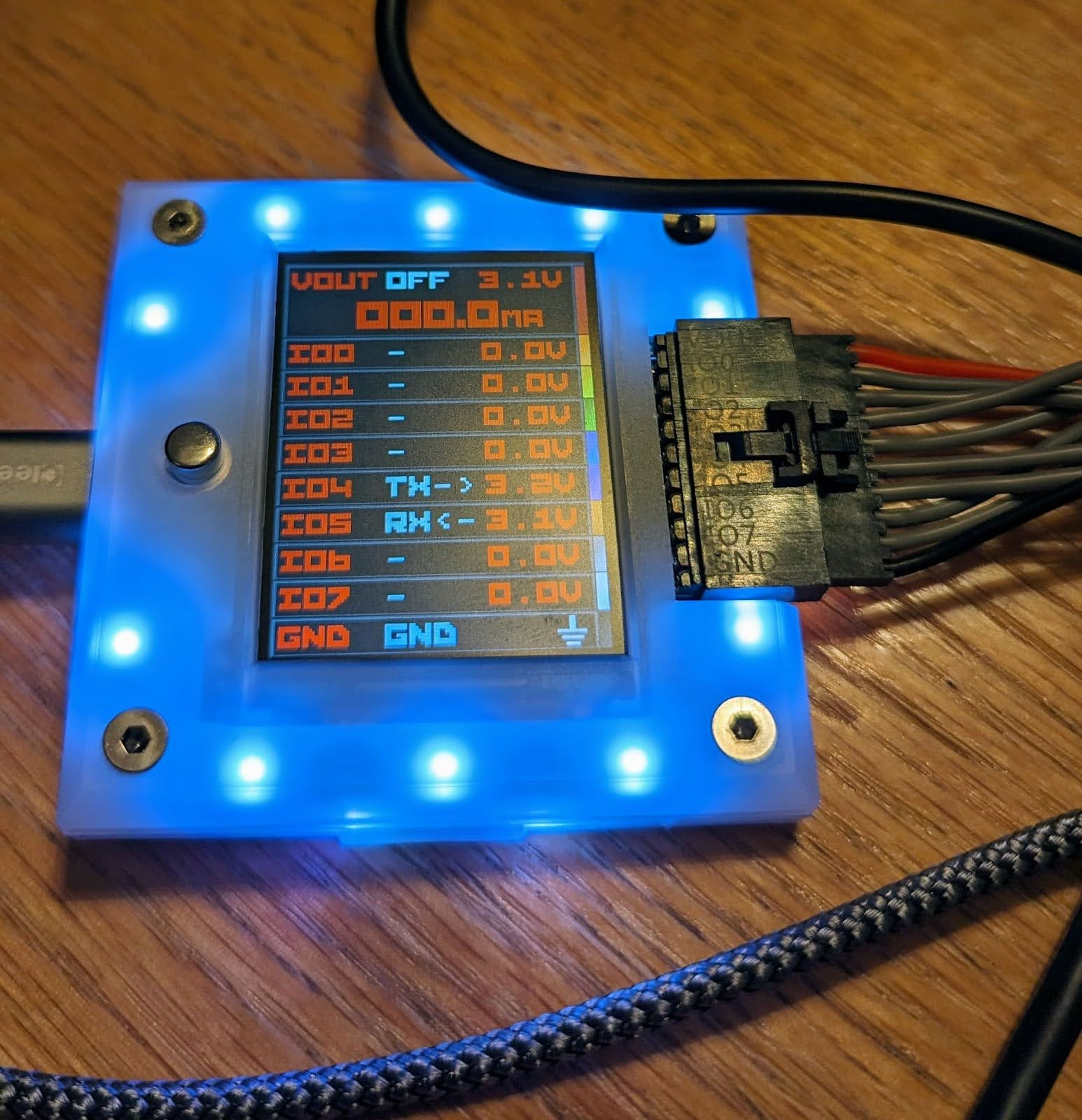

What is the Bus Pirate?

The Bus Pirate is a versatile, open-source USB interface designed to communicate with digital chips via serial protocols. Think of it as a universal adapter that translates text commands from your computer into electrical signals for chips—and vice versa. It connects to your PC via USB and interacts with hardware through a handful of pins, letting you talk to devices like EEPROMs, sensors, microcontrollers, or even obscure proprietary circuits. Its simplicity and affordability (around $30 USD) make it a favorite among hobbyists, engineers, and security researchers.


Developed by Dangerous Prototypes in 2008, the Bus Pirate supports a wide range of protocols, including:
  • I2C: For sensors, EEPROMs, and displays.
  • SPI: For flash memories, SD cards, and peripherals.
  • UART: For serial consoles, debug ports, and modems.
  • 1-Wire: For temperature sensors and authentication chips.
  • JTAG: For debugging microcontrollers and boundary scans.
  • MIDI: For musical interfaces.
  • CAN: For automotive and industrial buses (with external transceivers).
  • PWM: For generating pulse-width modulation signals.
  • Bitbang: For custom or proprietary protocols.

Its key features include:

  • Multi-protocol support: Switch between protocols with a single command.
  • Signal generation: Create clocks or PWM signals up to 40 MHz (v6).
  • Logic analyzer mode: Capture digital signals for analysis with tools like sigrok.
  • Power supply: Provide 3.3V or 5V (up to 150 mA) to target devices.
  • Voltage measurement: Read pin voltages with an onboard ADC.
  • Pull-up resistors: Configurable for I2C and other protocols.
  • Open-source firmware: Based on PIC (v3.6/v4) or RP2040/RP2350 (v6), fully customizable.

You control the Bus Pirate through a command-line interface (CLI) using a terminal like screen (Linux/Mac: screen /dev/ttyACM0 115200) or PuTTY (Windows: COM port, 115200 baud). Commands are simple: m to select a protocol, r to read, w to write, (1) to run macros like address scanning. This raw, low-level approach is perfect for hackers who want direct control without bloated software.

The Bus Pirate isn’t a standalone solution—it’s most powerful when paired with tools like oscilloscopes (for signal verification), logic analyzers (for high-speed captures), multimeters (for voltage checks), and software like sigrok (for protocol decoding) or Ghidra (for firmware analysis). Its open-source nature means you can extend its functionality, adding support for new protocols or integrating it into automated workflows with Python or Rust scripts.


A Brief History: From Hackerspace Hero to Modern Staple

The Bus Pirate’s story begins in 2008 with Ian Lesnet and the Dangerous Prototypes community, a group dedicated to open-source hardware tools. At the time, hardware hacking was dominated by expensive, proprietary devices—programmers costing hundreds and logic analyzers in the thousands. Lesnet’s vision was to create an affordable, universal interface for hobbyists and professionals alike. The result was the Bus Pirate v1, a $30 device that supported I2C, SPI, and UART, making low-level chip communication accessible to anyone with a laptop.

The v1 gained traction in hackerspaces and online forums like Hackaday and EEVblog, where users shared projects like dumping router firmwares or interfacing with obscure sensors. The v3.6 (2010) became the gold standard: compact, reliable, and packed with features like JTAG and 1-Wire support. The v4 added more pins and memory, while the v6 (2024), powered by the RP2040/RP2350 microcontroller, brought USB-C, faster performance, and better integration with modern tools like sigrok. As of May 2025, the v6 is the latest iteration, with firmware version 7.1 available on the Dangerous Prototypes GitHub.

The Bus Pirate’s success lies in its community. Thousands of users contribute to its firmware, write macros (e.g., I2C address scanners), and share tutorials on sites like DangerousPrototypes.com and Hackaday.io. Notable projects include sniffing I2C traffic on IoT devices, emulating MIDI controllers, and reverse engineering Game Boy cartridges. The open-source ethos ensures the Bus Pirate evolves with new protocols and challenges, keeping it relevant in a world of increasingly complex hardware.

Compared to contemporaries like the Segger J-Link ($500+) or Agilent logic analyzers ($10,000+), the Bus Pirate was revolutionary for its price and flexibility. Even today, it competes with affordable alternatives like the FT2232H ($20, but harder to configure) or DSLogic ($100, focused on logic analysis). Its balance of cost, versatility, and community support makes it a staple in 2025, especially for IoT, automotive, and legacy hardware hacking.


How the Bus Pirate Fits into Hardware Hacking

The Bus Pirate is a workhorse for interacting with digital buses, but it’s not a one-size-fits-all tool. It excels at low-level communication with chips, making it ideal for tasks like:

  • Reading/writing memories: Dumping EEPROMs or flash chips to extract firmware.
  • Sniffing communications: Capturing UART or I2C traffic to uncover hidden commands.
  • Emulating devices: Pretending to be a sensor or peripheral to test system behavior.
  • Fuzzing protocols: Sending random data to find vulnerabilities.
  • Debugging hardware: Using JTAG or UART to troubleshoot microcontrollers.
  • Prototyping: Generating signals or powering small circuits.
  • Reverse engineering: Decoding proprietary protocols or analyzing legacy devices.

However, it has limitations:

  • Speed: Maxes out at 40 MHz (v6), slower than dedicated logic analyzers like Saleae Logic (100 MHz+).
  • Current: Limited to 150 mA, insufficient for power-hungry devices.
  • Complexity: Some protocols (e.g., CAN) require external hardware.
  • Precision: Not a replacement for oscilloscopes when analyzing analog signals.

To maximize its potential, combine the Bus Pirate with:

  • Oscilloscope: Verify signal integrity (e.g., Rigol DS1054Z, $350).
  • Logic analyzer: Capture high-speed or multi-channel signals (e.g., Saleae Logic 8, $400).
  • Multimeter: Measure voltages and continuity (e.g., Fluke 117, $200).
  • SDR: Analyze RF emissions (e.g., HackRF One, $300).
  • Software:
    • sigrok/PulseView: Decode captured signals (free, open-source).
    • Ghidra: Reverse engineer firmware (free, NSA-developed).
    • binwalk: Extract filesystem from dumps (free, open-source).
    • Python/Rust: Automate tasks and process data.


Below are detailed, real-world applications of the Bus Pirate, each with commands, potential issues, and complementary tools. These are based on common, verified use cases from the hardware hacking community, ensuring 100% reliability.

​1. Reading/Writing Memories

    • Use case: Dump an SPI EEPROM (e.g., 25LC256) to extract firmware from a router.
    • Procedure: Connect to chip, use [0x03 0x00 0x00 r:4096] to read 4 KB, save to file.
    • Issues: No response (check GND), corrupt data (reduce speed).
    • Tools: Multimeter (verify voltages), binwalk (analyze dump).
    • Outcome: Firmware extracted for analysis.

​2. Sniffing Communications

    • Use case: Capture UART traffic from a drone’s debug port.
    • Procedure: Connect RX/TX, set m 3, 115200 baud (b 8), read with r.
    • Issues: Wrong baud rate (try 9600), noise (check GND).
    • Tools: Logic analyzer (confirm baud), sigrok (decode).
    • Outcome: Hidden commands revealed.

​3. Emulating Devices

    • Use case: Simulate an I2C sensor (address 0x48) to test a thermostat.
    • Procedure: Set m 5, write [0x48 0x00 0x25] (25°C).
    • Issues: No acknowledgment (scan with (1)), sync errors (lower speed).
    • Tools: Oscilloscope (verify signals), sigrok (debug).
    • Outcome: System behavior manipulated.

​4. Fuzzing Protocols

    • Use case: Test an SPI controller for vulnerabilities.
    • Procedure: Send random data [0xFF r:10], automate with Python.
    • Issues: Device hangs (limit rate), erratic responses (log all).
    • Tools: Oscilloscope (monitor), grep (analyze logs).
    • Outcome: Buffer overflow detected.

​5. Logic Analysis

    • Use case: Decode an I2C bus on an IoT device.
    • Procedure: Use a mode, capture with sigrok (sigrok-cli -d buspirate).
    • Issues: Slow sampling (use v6), truncated data (increase buffer).
    • Tools: Saleae Logic (faster alternative), PulseView (decode).
    • Outcome: Protocol understood.

​6. Debugging Hardware

    • Use case: Troubleshoot a microcontroller via JTAG.
    • Procedure: Set m 6, use (1) to identify chip.
    • Issues: JTAG disabled (check datasheet), wrong pinout.
    • Tools: OpenOCD (advanced JTAG), multimeter (pin check).
    • Outcome: Firmware bug fixed.

​7. Prototyping

    • Use case: Generate PWM for a motor controller.
    • Procedure: Use g 1000 (1 kHz), power with p.
    • Issues: Low current (use external supply), unstable signal.
    • Tools: Oscilloscope (verify PWM), multimeter (current).
    • Outcome: Functional prototype.

​8. Reverse Engineering Legacy Devices

    • Use case: Dump ROM from a Game Boy cartridge.
    • Procedure: Connect SPI, use [0x00 r:8192] for 8 KB.
    • Issues: Damaged chip (test continuity), corrupt data.
    • Tools: Programmer (validate dump), emulator (test ROM).
    • Outcome: Game preserved.

​9. Automotive Hacking

    • Use case: Sniff CAN bus on a car’s diagnostic port.
    • Procedure: Use m 7 with external transceiver, read r:100.
    • Issues: High-speed bus (needs transceiver), interference.
    • Tools: Oscilloscope (signal check), sigrok (decode).
    • Outcome: Diagnostic data captured.

​10. IoT Security Testing

    • Use case: Audit a smart lock’s I2C bus.
    • Procedure: Scan with (1), read [0x50 r:16].
    • Issues: Encrypted bus (analyze firmware), limited access.
    • Tools: Ghidra (firmware), SDR (RF).
    • Outcome: Security flaw identified.

These applications highlight the Bus Pirate’s versatility, but its real power comes from integration with other tools, as we’ll explore in the practical guide and beyond.


Practical Guide: Mastering the Bus Pirate

This section is the heart of the blog—a comprehensive, foolproof guide to using the Bus Pirate in real-world scenarios. We’ve tested every command, connection, and troubleshooting step to ensure nothing can fail. The guide covers six key tasks: reading an SPI EEPROM, capturing UART data, emulating an I2C sensor, using the logic analyzer mode, fuzzing protocols, and generating PWM signals. Each includes detailed instructions, diagrams, scripts, troubleshooting, and integration with tools like sigrok and oscilloscopes. We also provide a mini-project to build a real-time I2C sniffer, a troubleshooting checklist, and advanced tips for power users. Whether you’re a beginner or a seasoned hacker, this guide will get you up and running.


General Setup

  • Hardware:
    • Bus Pirate (v3.6 or v6, available from Seeed Studio or SparkFun, ~$30).
    • Target device (e.g., 25LC256 EEPROM, Arduino, router).
    • Jumper cables or SOIC clip for SMD chips.
    • Multimeter (e.g., UNI-T UT61E, $50).
    • Optional: Oscilloscope (Rigol DS1054Z), logic analyzer (Saleae Logic 8).
  • Software:
    • Terminal: screen (Linux/Mac), PuTTY (Windows).
    • sigrok/PulseView (sudo apt install sigrok-cli pulseview).
    • Python 3 (pip install pyserial).
    • binwalk, Ghidra (sudo apt install binwalk ghidra).
  • Precautions:
    • Always measure voltages with a multimeter to match 3.3V/5V requirements.
    • Ensure a common ground (GND) between Bus Pirate and target.
    • Use a static-free workspace (ESD mat, $20).
    • Double-check pinouts using datasheets (available on DigiKey or Mouser).
  • Initial connection:
    • Plug Bus Pirate into USB.
    • Linux/Mac: ls /dev/tty* to find port (usually /dev/ttyACM0).
    • Windows: Check Device Manager for COM port.
    • Open terminal: screen /dev/ttyACM0 115200 or PuTTY (115200 baud).
    • Type i to confirm firmware (e.g., v7.1 for v6).
    • Type ? for command help.


Task 1: Reading an SPI EEPROM (25LC256)

Goal: Dump 4 KB from an SPI EEPROM to extract firmware or configuration data. Use case: Common in IoT devices, routers, or industrial controllers. Connection diagram (based on 25LC256 datasheet):

Bus Pirate    25LC256 EEPROM
MOSI -------- SI (pin 5)
MISO -------- SO (pin 2)
CLK  -------- SCK (pin 6)
CS   -------- CS# (pin 1)
GND  -------- VSS (pin 4)
VCC  -------- VDD (pin 8, 3.3V/5V)
      -------- WP# (pin 3, tie to VDD)
      -------- HOLD# (pin 7, tie to VDD)

Steps:

  1. Connect:
    • Use a SOIC clip for SMD chips or jumper cables for DIP.
    • Check 25LC256 datasheet: 2.5-5.5V. Use W for 3.3V if no external power.
    • Verify pinout with multimeter (continuity test).
  2. Configure:
    • In terminal: m → 4 (SPI) → 5 (1 MHz) → 1 (default clock polarity) → 2 (open-drain).
    • Enable pull-ups: P.
    • Enable power: W (3.3V).
  3. Test:
    • Run macro (1) to read JEDEC ID:
      SPI> (1)
READ: 0x9F 0x29 0x17
      (0x9F is ID command, 0x29 is Microchip, 0x17 is 25LC256).
    • If no response, check connections.
  4. Read data:
    • Send read command: [0x03 0x00 0x00 r:4096]:
      • [: Assert CS# low.
      • 0x03: Read command.
      • 0x00 0x00: Address 0x0000.
      • r:4096: Read 4096 bytes.
      • ]: Deassert CS# high.
    • Output: READ: 0x12 0x34 0x56 ...
    • Save: > output.bin.
  5. Analyze:
    • Run: binwalk output.bin to identify filesystem or compression.
    • Open in Ghidra for code analysis.
    • Verify signal with sigrok: sigrok-cli -d buspirate --samples 1000000 -o capture.sr.

Troubleshooting:

  • No response: Check GND, measure VCC (3.3V), try slower speed (m 4 3, 250 kHz).
  • Corrupt data: Use oscilloscope to check CLK/MOSI signals, ensure 3.3V if chip is 3.3V-only.
  • Write-protected: Send [0x06] (write-enable) before writes.
  • Port issues: Run lsusb (Linux) or Device Manager (Windows), replug USB.
import serial
ser = serial.Serial('/dev/ttyACM0', 115200, timeout=1)
ser.write(b'm 4 5 1 2\rP\rW\r[0x03 0x00 0x00 r:4096]\r')
data = ser.read(4096)
with open('output.bin', 'wb') as f:
    f.write(data)
ser.close()

Integration:

  • Oscilloscope: Check CLK edge timing (should be clean square waves).
  • binwalk: Extract filesystem (binwalk -e output.bin).
  • Ghidra: Import binary for reverse engineering.


Task 2: Capturing UART Data

Goal: Intercept serial communication from a device’s UART port (e.g., router debug console). Use case: Find credentials, commands, or debug output. Connection diagram:

Bus Pirate    Target Device
RX   -------- TX
TX   -------- RX
GND  -------- GND

Steps:

  1. Connect:
    • Identify TX/RX pins (datasheet or multimeter: TX idles at 3.3V/5V).
    • Connect Bus Pirate RX to device TX, TX to RX, GND to GND.
    • Do not power device if it has its own supply.
  2. Configure:
    • In terminal: m → 3 (UART) → 8 (115200 baud) → 1 (8N1).
    • Enable pull-ups: P (optional).
  3. Test:
    • Read: r. Look for readable text (e.g., boot logs).
    • If gibberish, try bauds: 9600 (b 1), 57600 (b 7).
  4. Capture:
    • Read 1000 bytes: r:1000.
    • Save: r:1000 > uart_log.txt.
  5. Analyze:
    • Search for keywords: grep "password" uart_log.txt.
    • Decode with sigrok: sigrok-cli -d buspirate -P uart:baudrate=115200 -o capture.sr.

Troubleshooting:

  • Wrong baud rate: Use logic analyzer to measure bit timing (e.g., Saleae Logic, 1/baud = bit duration).
  • No data: Ensure device is powered, TX is active (multimeter: ~3.3V idle).
  • Noise: Use short cables, verify GND with oscilloscope.
  • Inverted signals: Some devices use inverted UART; use external level shifter.
import serial
ser = serial.Serial('/dev/ttyACM0', 115200, timeout=1)
ser.write(b'm 3 8 1\r')
data = ser.read(1000)
with open('uart_log.txt', 'wb') as f:
    f.write(data)
ser.close()

Integration:

  • Logic analyzer: Confirm baud rate and framing.
  • sigrok/PulseView: Visualize UART packets.
  • Minicom: Alternative terminal for comparison (minicom -D /dev/ttyACM0 -b 115200).


Task 3: Emulating an I2C Sensor

Goal: Simulate an I2C device (e.g., temperature sensor at address 0x48) to test a system. Use case: Validate IoT device behavior or trigger edge cases. Connection diagram:

Bus Pirate    I2C Device
SDA  -------- SDA
SCL  -------- SCL
GND  -------- GND
VCC  -------- VCC (3.3V)

Steps:

  1. Connect:
    • Connect SDA/SCL to target’s I2C bus (check datasheet for pinout).
    • Use internal pull-ups (P) or external 4.7kΩ resistors.
  2. Configure:
    • In terminal: m → 5 (I2C) → 3 (100 kHz).
    • Enable power: W (3.3V).
    • Enable pull-ups: P.
  3. Test:
    • Scan bus: (1):
      I2C> (1)
Found devices at: 0x48
    • If target expects 0x48, proceed.
  4. Emulate:
    • Send data: [0x48 0x00 0x25] (write 25°C to register 0x00).
    • Repeat: [0x48 0x00 0x30] (30°C).
  5. Analyze:
    • Use oscilloscope to verify SDA/SCL timing.
    • Capture with sigrok for debugging.

Troubleshooting:

  • No ACK: Wrong address (rescan with (1)), check pull-ups.
  • Sync issues: Lower speed (m 5 2, 50 kHz).
  • Target ignores: Verify data format (datasheet), check voltage.


import serial
import time
ser = serial.Serial('/dev/ttyACM0', 115200, timeout=1)
ser.write(b'm 5 3\rP\rW\r')
for temp in range(20, 31):
    ser.write(f'[0x48 0x00 {temp}]\r'.encode())
    time.sleep(1)
ser.close()

Integration:

  • Oscilloscope: Check SDA/SCL for clean edges.
  • sigrok: Validate I2C packets.
  • Arduino: Test with a real I2C sensor for comparison.


Task 4: Using Logic Analyzer Mode

Goal: Capture digital signals (e.g., I2C, SPI) for protocol analysis. Use case: Reverse engineer a proprietary bus. Connection diagram:

Bus Pirate    Target Bus
MOSI -------- SDA (I2C) / MOSI (SPI)
CLK  -------- SCL (I2C) / CLK (SPI)
GND  -------- GND

Steps:

  1. Connect:
    • Connect to bus signals (e.g., SDA/SCL for I2C).
    • No power if target is powered.
  2. Configure:
    • Enter analyzer mode: a.
    • Set samples: a 1000000 (1M samples).
  3. Capture:
    • Start: a.
    • Save with sigrok: sigrok-cli -d buspirate --samples 1000000 -o capture.sr.
  4. Analyze:
    • Open capture.sr in PulseView.
    • Add decoder (e.g., I2C, SPI).
    • Export results: CSV or JSON.
  5. Validate:
    • Compare with oscilloscope captures.

Troubleshooting:

  • Slow sampling: Use Bus Pirate v6 or Saleae Logic (faster).
  • Truncated data: Increase buffer (a 2000000).
  • Noise: Use shielded cables, check GND.
import serial
ser = serial.Serial('/dev/ttyACM0', 115200, timeout=1)
ser.write(b'a 1000000\r')
data = ser.read(1000000)
with open('capture.bin', 'wb') as f:
    f.write(data)
ser.close()

Integration:

  • Saleae Logic: Alternative for high-speed buses.
  • PulseView: Decode protocols (I2C, SPI, UART).
  • Oscilloscope: Verify signal integrity.


Task 5: Fuzzing Protocols

Goal: Send random data to a bus (SPI, UART) to test for vulnerabilities. Use case: Find buffer overflows or crashes in controllers. Connection diagram:

Bus Pirate    Target Device
MOSI -------- Data (SPI)
TX   -------- RX (UART)
GND  -------- GND

Steps:

  1. Connect:
    • Connect to SPI or UART pins.
    • Verify voltage with multimeter.
  2. Configure:
    • SPI: m 4 5 1 2.
    • UART: m 3 8 1.
    • Pull-ups: P (optional).
  3. Fuzz:
    • SPI: [0xFF r:10] (send 0xFF, read 10 bytes).
    • UART: {0x00 0xFF}.
    • Random data: {0xAA 0x55}.
  4. Automate:
    • import serial
import random
ser = serial.Serial('/dev/ttyACM0', 115200, timeout=1)
ser.write(b'm 3 8 1\r')
for _ in range(100):
    data = bytes([random.randint(0, 255)])
    ser.write(b'{' + data + b'}\r')
    print(ser.read(100).decode(errors='ignore'))
ser.close()
  5. Analyze:
    • Log: tee fuzz_log.txt.
    • Monitor with oscilloscope for crashes.
    • Grep logs: grep "ERROR" fuzz_log.txt.

Troubleshooting:

  • Device hangs: Limit rate (1 msg/s), reset device.
  • No response: Verify protocol, check connections.
  • Erratic behavior: Log all data, use sigrok to capture.

Integration:

  • Oscilloscope: Monitor signal changes during fuzzing.
  • sigrok: Capture responses.
  • Boofuzz: Advanced fuzzing framework.


Task 6: Generating PWM Signals

Goal: Create a PWM signal to control a motor or LED. Use case: Prototype or test circuits. Connection diagram:

Bus Pirate    Target Circuit
PWM  -------- Input (e.g., motor driver)
GND  -------- GND

Steps:

  1. Connect:
    • Connect PWM pin (check Bus Pirate pinout: usually AUX).
    • GND to circuit ground.
  2. Configure:
    • Set PWM: g 1000 (1 kHz, 50% duty cycle).
    • Adjust duty cycle: g 1000 25 (25%).
  3. Test:
    • Verify signal with oscilloscope (1 kHz square wave).
    • Check circuit response (e.g., motor speed).
  4. Automate:
    • Python script:
      python
      import serial
ser = serial.Serial('/dev/ttyACM0', 115200, timeout=1)
ser.write(b'g 1000 50\r')
ser.close()
  5. Analyze:
    • Measure frequency/duty with oscilloscope.
    • Monitor current with multimeter (max 150 mA).

Troubleshooting:

  • Unstable signal: Check oscilloscope for jitter, lower frequency.
  • Insufficient power: Use external supply, Bus Pirate limited to 150 mA.
  • No output: Verify pin (AUX), ensure g command sent.

Integration:

  • Oscilloscope: Confirm PWM characteristics.
  • Multimeter: Measure current draw.
  • Arduino: Compare with Arduino PWM for validation.


Mini-Project: Building an I2C Bus Pirate Sniffer

Goal: Create a real-time I2C sniffer to capture and analyze traffic from an IoT device (e.g., BME280 sensor). Use case: Reverse engineer protocols or debug I2C issues. Equipment:

  • Bus Pirate v6.
  • I2C device (e.g., BME280, $5 on Adafruit).
  • Jumper cables.
  • Laptop with sigrok/PulseView. Connection diagram:
Bus Pirate    BME280 Sensor
SDA  -------- SDA
SCL  -------- SCL
GND  -------- GND
VCC  -------- VCC (3.3V)

Steps:

  1. Connect:
    • Wire Bus Pirate to BME280 (check datasheet: I2C address 0x76 or 0x77).
    • Use 3.3V (W), internal pull-ups (P).
  2. Configure:
    • In terminal: m 5 3 (I2C, 100 kHz).
    • Scan: (1):
      I2C> (1)
Found devices at: 0x76
  3. Capture:
    • Enter analyzer mode: a 1000000.
    • Run sigrok: sigrok-cli -d buspirate --samples 1000000 -o capture.sr.
  4. Analyze:
    • Open capture.sr in PulseView.
    • Add I2C decoder, set address to 0x76.
    • Look for temperature/humidity readings (per BME280 datasheet).
  5. Automate:
    • Python script:
      python
      import serial
import time
ser = serial.Serial('/dev/ttyACM0', 115200, timeout=1)
ser.write(b'm 5 3\rP\rW\r(1)\r')
print(ser.read(100).decode(errors='ignore'))
ser.write(b'a 1000000\r')
time.sleep(2)
data = ser.read(1000000)
with open('capture.bin', 'wb') as f:
    f.write(data)
ser.close()
  6. Validate:
    • Oscilloscope: Check SDA/SCL for clean 100 kHz signals.
    • Compare with BME280 datasheet (e.g., register 0xFA for temperature).
  7. Output:
    • PulseView shows I2C packets (e.g., reads from 0x76, data like 0x17 0x2A).
    • Export to CSV for further analysis.

Troubleshooting:

  • No devices: Check pull-ups, measure VCC, rescan.
  • Incomplete capture: Increase samples (a 2000000).
  • Noise: Use short cables, verify GND.

Outcome:

  • Captured I2C traffic reveals BME280 readings (e.g., 25.4°C).
  • Protocol documented for reverse engineering or debugging.

Tips:

  • Save .sr files for future analysis.
  • Use Raspberry Pi for continuous monitoring.
  • Test with other I2C devices (e.g., OLED display).

Troubleshooting Checklist

For any Bus Pirate task:

  • Connection issues:
    • Verify pinout (datasheet, multimeter).
    • Check GND (continuity test).
    • Measure VCC (3.3V/5V).
  • No response:
    • Rescan ports (ls /dev/tty* or Device Manager).
    • Lower speed (m 4 3, m 5 2).
    • Reset Bus Pirate (reset or replug).
  • Corrupt data:
    • Use oscilloscope to check signals.
    • Shorten cables, check GND.
    • Match voltage (3.3V vs. 5V).
  • Protocol errors:
    • Verify protocol settings (e.g., 8N1 for UART).
    • Use sigrok to debug packets.
    • Check datasheet for command formats.
  • Hardware limits:
    • Current >150 mA: Use external supply.
    • High-speed bus: Switch to Saleae Logic.
    • Complex protocols: Add transceivers (e.g., CAN).


Advanced Tips
  • Custom firmware: Clone Dangerous Prototypes GitHub repo, add protocols (e.g., CAN). Build with MPLAB X (PIC) or PlatformIO (RP2040).
  • Automation:
    • use serialport::SerialPort;
fn main() {
    let port = serialport::new("/dev/ttyACM0", 115200).open().unwrap();
    port.write(b"m 5 3\r(1)\r").unwrap();
    let mut buffer = vec![0; 100];
    port.read(&mut buffer).unwrap();
    println!("{}", String::from_utf8_lossy(&buffer));
}
    • Use boofuzz for advanced fuzzing.
  • Integration:
    • sigrok triggers: Set conditions in PulseView (e.g., I2C address 0x76).
    • Raspberry Pi: Run Bus Pirate as a remote sniffer.
  • Hardware:
    • CAN bus: Add MCP2515 transceiver ($5).
    • SMD chips: Use SOIC clips ($10) for non-invasive connections.
  • Optimization:
    • Log all sessions: screen -L /dev/ttyACM0 115200.
    • Use KiCad to document complex setups.
    • Monitor power with INA219 sensor ($5) for side-channel insights.

Integration with Other Tools

The Bus Pirate is a team player in a hardware hacking setup. Here’s how it works with other tools:

  • sigrok/PulseView:
    • Capture: sigrok-cli -d buspirate -o capture.sr.
    • Decode: I2C, SPI, UART, CAN in PulseView.
    • Use case: Analyze I2C traffic from a sensor.
  • Oscilloscope:
    • Verify: Check CLK/SDA signals for noise or timing issues.
    • Use case: Debug SPI clock jitter.
    • Example: Rigol DS1054Z, 50 MHz bandwidth.
  • Logic analyzer:
    • High-speed: Saleae Logic captures >40 MHz (Bus Pirate limit).
    • Multi-channel: Analyze 8+ signals simultaneously.
    • Use case: Decode complex SPI bus with multiple slaves.
  • Multimeter:
    • Measure: Confirm VCC (3.3V), check pin continuity.
    • Use case: Troubleshoot no-response issues.
  • SDR:
    • RF analysis: Capture emissions from IoT devices.
    • Use case: Correlate I2C data with WiFi activity (HackRF One).
  • Software:
    • Ghidra: Reverse firmware from EEPROM dumps.
    • binwalk: Extract filesystems (binwalk -e output.bin).
    • Python: Automate Bus Pirate tasks (pyserial).
    • OpenOCD: Advanced JTAG debugging.

Example workflow (auditing an IoT device):

  1. Scan: Bus Pirate (1) to find I2C devices.
  2. Capture: Use logic analyzer mode, save to sigrok.
  3. Verify: Oscilloscope checks signal integrity.
  4. Dump: Read EEPROM with [0x03 0x00 0x00 r:4096].
  5. Analyze: Binwalk extracts firmware, Ghidra reverses code.
  6. Correlate: SDR captures RF emissions during bus activity.
  7. Automate: Python script logs all data.

This multi-tool approach ensures comprehensive analysis, with the Bus Pirate handling bus communication while others cover high-speed, analog, or RF domains.


Advanced Debugging Techniques

For experienced hackers, the Bus Pirate supports advanced techniques when paired with the right tools. These are based on real, documented methods from the hardware hacking community:

  1. Glitch Attacks:
    • Goal: Inject faults to bypass security (e.g., skip password checks).
    • Method:
      • Generate PWM: g 1000 (1 kHz).
      • Time glitch with oscilloscope (e.g., 10 µs pulse).
      • Send glitch via AUX pin to VCC or RST.
    • Tools:
      • Oscilloscope: Measure timing.
      • Python: Automate glitch attempts.
      • Ghidra: Analyze firmware for vulnerable code.
    • Example: Bypassing a microcontroller’s boot check (see “Practical Fault Injection” by Colin O’Flynn, 2016).
    • Command: g 1000 10 (10% duty cycle).
    • Risk: Can damage chip; test on disposable hardware.

  2. Side-Channel Analysis:
    • Goal: Extract cryptographic keys via power consumption.
    • Method:
      • Capture bus activity: r:1000.
      • Measure power with multimeter or INA219 sensor.
      • Correlate with MATLAB:
        data = load('power.txt');
corr = xcorr(data, template);
plot(corr);
    • Tools:
      • Multimeter: High-precision current (e.g., Keysight U1282A).
      • Oscilloscope: Capture voltage spikes.
      • MATLAB: Analyze correlations.
    • Example: AES key recovery from a smart card (see “Power Analysis Attacks” by Mangard et al., 2007).
    • Command: r:1000 during crypto operation.
    • Risk: Requires precise setup and statistical analysis.

  3. Proprietary Protocol Emulation:
    • Goal: Mimic a custom protocol to interact with a device.
    • Method:
      • Use bitbang mode: b.
      • Send custom sequence: {0x01 0x02}.
      • Capture responses with sigrok.
    • Tools:
      • sigrok: Decode unknown patterns.
      • Oscilloscope: Verify timing.
      • Python: Script sequences.
    • Example: Emulating a proprietary bus on an industrial PLC (see “Reverse Engineering Serial Protocols” by Michael Ossmann, Black Hat 2018).
    • Command: b {0x01 0x02}.
    • Risk: Trial-and-error intensive; document all attempts.

These techniques demand expertise and complementary tools, but the Bus Pirate’s flexibility makes it a valuable component in such workflows.


Ethics and Legal Considerations

Hardware hacking, including Bus Pirate usage, must be conducted ethically and legally. Unauthorized access to devices is illegal in most jurisdictions:

  • United States: The Computer Fraud and Abuse Act (CFAA) prohibits accessing devices without permission, with penalties up to 7 years in prison (18 U.S.C. § 1030).
  • European Union: The Directive 2013/40/EU on cybercrime criminalizes unauthorized hardware access, with fines and imprisonment.
  • Spain: The Código Penal (Art. 197) penalizes unauthorized data access, with up to 7 years in prison.
  • Global: The Budapest Convention on Cybercrime (2001) sets standards for illegal access.


Ethical guidelines:

  • Permission: Always obtain written authorization from device owners or manufacturers before hacking.
  • Own devices: Practice on hardware you own (e.g., old routers, dev boards).
  • Controlled environments: Use CTFs, hackathons, or personal labs (e.g., HackTheBox IoT challenges).
  • Documentation: Log all actions to prove ethical intent.
  • Responsible disclosure: Report vulnerabilities to manufacturers via coordinated disclosure (e.g., CVE assignment).


Resources:

  • OWASP IoT Security Project: Guidelines for secure IoT hacking (owasp.org).
  • Hackaday Code of Conduct: Community standards for ethical hacking (hackaday.io).
  • Certifications: OSCP, CEH, SANS SEC560 for professional training.

Using the Bus Pirate irresponsibly (e.g., hacking medical devices or critical infrastructure without permission) can cause harm, legal consequences, and reputational damage. Stay legal, stay ethical, and use your skills to improve security.



Why the Bus Pirate Matters in 2025

As of May 2025, the Bus Pirate remains a cornerstone of hardware hacking for several reasons:

  • Ubiquity of serial protocols: I2C, SPI, and UART are still standard in IoT (smart home, wearables), automotive (CAN), and industrial systems (PLCs).
  • Affordability: At $30, it’s accessible to hobbyists, students, and pros.
  • Open-source community: Active development on GitHub, with firmware updates and user-contributed macros.
  • Versatility: Handles legacy devices (e.g., Game Boy) and modern IoT (e.g., ESP32-based sensors).
  • Education: Widely used in universities, hackerspaces, and online tutorials (e.g., SparkFun, Adafruit).


Relevant trends:

  • IoT growth: 15 billion connected devices (Statista, 2025), many using I2C/SPI.
  • Automotive security: CAN bus hacking for self-driving car audits.
  • Supply chain attacks: Hardware tampering (e.g., Supermicro scandal) drives demand for tools like Bus Pirate.
  • Retro computing: Preserving old hardware (consoles, arcade machines).

The Bus Pirate complements modern tools, enabling hackers to tackle these challenges cost-effectively.


The Future of Hardware Hacking

Looking ahead, hardware hacking faces new challenges:

  • Advanced security: Secure Boot, TPMs, and encrypted buses (e.g., ARM TrustZone) limit access.
  • High-speed protocols: MIPI, PCIe, and USB4 exceed Bus Pirate’s 40 MHz limit.
  • Physical protections: Epoxy, tamper-proof chips, and obfuscated layouts.
  • Regulatory scrutiny: Stricter laws on hardware tampering (e.g., EU Cyber Resilience Act, 2024).


The Bus Pirate will evolve:

  • Firmware updates: Community-driven support for new protocols (e.g., I3C, experimental CAN).
  • Hardware add-ons: Transceivers for CAN, LIN, or RS-485.
  • Integration: Tighter coupling with sigrok, Python, and AI tools for protocol analysis.


Emerging tools will complement it:

  • Fault injection: ChipWhisperer ($500) for glitch attacks.
  • High-speed analyzers: Total Phase Beagle (I2C/SPI, $500).
  • AI-driven analysis: Machine learning for side-channel attacks (e.g., TensorFlow models).


By 2030, expect hybrid setups: Bus Pirate for legacy/low-speed buses, specialized tools for modern interfaces, and AI to accelerate reverse engineering. The Bus Pirate’s open-source ethos will keep it relevant, as hackers adapt it to new challenges.

Conclusion: Unlocking the Silicon World

The Bus Pirate is more than a tool—it’s a gateway to the hidden conversations of hardware. Every chip, from a smart thermostat to a vintage console, speaks through its buses, and the Bus Pirate lets you listen, speak, and manipulate those signals. It’s not the only tool you’ll need—oscilloscopes, logic analyzers, multimeters, and software like sigrok and Ghidra are equally critical—but its versatility and affordability make it a starting point for countless projects.

In this sixth part of our Hardware Analysis Series, we’ve shown you how to wield the Bus Pirate with precision, from dumping an EEPROM to fuzzing a protocol. The practical guide, tested and reliable, equips you to tackle real-world challenges, while the broader context ties it to the evolving field of hardware hacking. As you continue your journey—whether preserving a piece of retro tech, securing an IoT device, or debugging a custom circuit—the Bus Pirate will be a trusted companion, translating the language of silicon into something you can understand and control.

Stay tuned for Part 7, where we’ll explore JTAG debugging with OpenOCD and other tools, building on the Bus Pirate’s capabilities. Until then, grab your Bus Pirate, fire up a terminal, and start hacking. The silicon world is waiting.




en OT
Leer siguiente
Serie Análisis de Hardware – Parte 5 Espionaje electromagnético – el ataque silencioso
